Saturday, September 25, 2010

Binding not Created for Host Header Site Collections

I noticed what I think is a bug (or maybe a limitation) in SharePoint 2010. When I use PowerShell to create a Host Header Site Collection, SharePoint does not create a binding in IIS. If I add the binding manually, everything works great, but I would expect SharePoint to do this for. Am I missing something?
The following PowerShell script will create a new web application. Note that I have the option to add a host header.
Add-PSSnapin Microsoft.SharePoint.Powershell -EA 0
Clear-Host

$WebAppURL = "http://intranet.brianbeach.com"
$HostHeader = "intranet.brianbeach.com"
$WebAppName = "Intranet Web Application"
$ContentDatabase = "Content_Intranet_Default"
$AppPoolName = "Intranet Content"
$AppPoolUserName = "DOMAIN\SERVICE_ACCOUNT"
$AppPoolCred = Get-Credential $AppPoolUserName
$AppPoolAccount = New-SPManagedAccount -Credential $AppPoolCred
$AuthProvider = New-SPAuthenticationProvider
$WebApp = New-SPWebApplication -ApplicationPool $AppPoolName -ApplicationPoolAccount $AppPoolAccount -Name $WebAppName -URL $WebAppURL -HostHeader $HostHeader -Port 80 -AuthenticationProvider $AuthProvider -DatabaseName $ContentDatabase

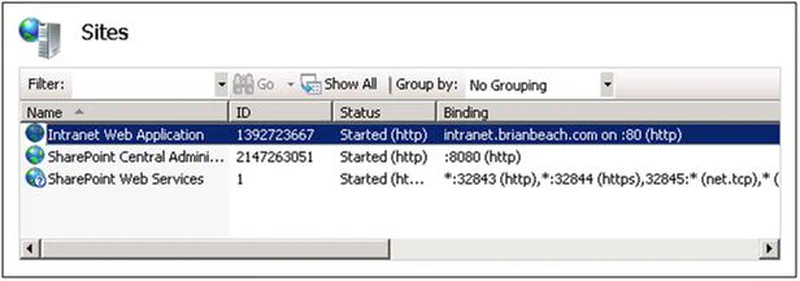

When I run it, a new site is created in IIS and the appropriate binding is created with the host header I supplied.

This next script will add a host header site collection to the web application. According to the documentation for New-SPSite, there is no way to pass the host header.
Add-PSSnapin Microsoft.SharePoint.Powershell -EA 0
Clear-Host

$OwnerEmail = "administrator@brianbeach.com"
$OwnerAlias = "DOMAIN\administrator"
$WebAppURL = "http://intranet.brianbeach.com"
$SiteURL = "http://wiki.brianbeach.com"
$WebApp = Get-SPWebApplication $WebAppURL
New-SPSite -url $SiteURL -HostHeaderWebApplication $WebApp -owneralias $OwnerAlias -ownerEmail $OwnerEmail -Template "WIKI#0"
When I run this script, the site collection is created, but the binding is not created in IIS.

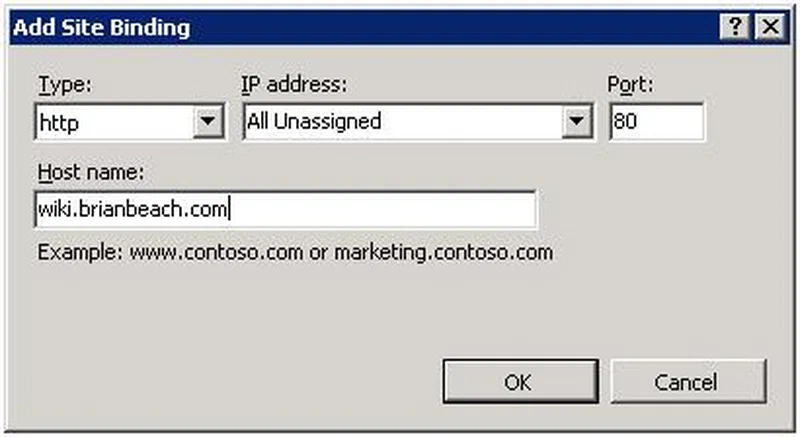

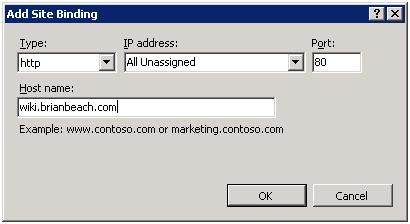

If I create the binding manually everything works great.

NOTE: I was able to script the creation of the binding.
Import-Module WebAdministration
$WebAppName = "Intranet Web Application"
$HostHeader = "wiki.brianbeach.com"
New-WebBinding -Name $WebAppName -Port 80 -Protocol "http" -HostHeader $HostHeader
Am I missing something? Is there another parameter I need to pass?

2 comments:

  1. I have since learned that you you should not use a host header on the web application. You must allow the web application to listen for all traffic on a given port. Personally I find this a bit limiting given that host header site collections do not support alternative access mappings. As a result I can only have at most two web applications. One listening on 80 and one on 443.

    ReplyDelete
  2. You can also have multiple IPs assigned to the server and be able to create a different web application bound to each IP so there is no need for a named binding. Most of the time though, using a web application for host header site collections makes it so you don't need multiple web applications because everything takes on its own URL.
