Replay Recorded Requests with JMeter

By Brian

I need to run a load test against Redshift. However, rather than repeatedly running a few sample queries, I want to replay all queries from the audit log over a period of time. I had never tried to do this in JMeter so it took a little hacking to get it working. I’m running this against Redshift, but the logic should apply to any workload. For example, you could use your web server logs to replay HTTP requests.

Audit Log

You can query the audit log in Redshift from the stl_query table. For example, the following query will return all queries run today. Note that I am converting the starttime to the number of seconds into the test this query should be run when I replay it.

1
2
3
4
5
6
7

SELECT  query,
        DATEDIFF(second, '2021-06-03',  starttime) AS Start,
        querytxt
FROM stl_query
WHERE userid = 100
AND starttime BETWEEN '2021-06-03' AND '2021-06-03'
ORDER BY starttime

With a little massaging, I end up with a flat file that looks like this. Obviously have replaced the original queries.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

Test	Start	Query
1	0       SELECT count(*) AS Count FROM users;
2	1       SELECT count(*) AS Count FROM users;
3	1       SELECT count(*) AS Count FROM users;
4	5       SELECT count(*) AS Count FROM users;
5	5       SELECT count(*) AS Count FROM users;
6	5       SELECT count(*) AS Count FROM users;
7	10      SELECT count(*) AS Count FROM users;
8	10      SELECT count(*) AS Count FROM users;
9	10      SELECT count(*) AS Count FROM users;
10	10      SELECT count(*) AS Count FROM users;

Test Plan

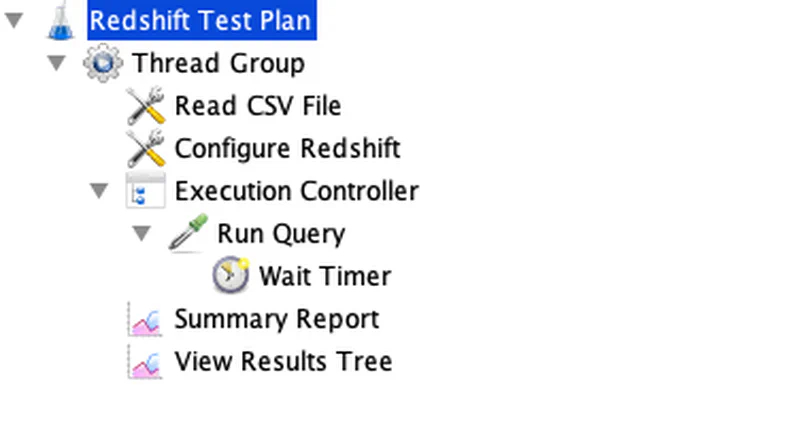

My test plan looks like this.

Test Plan

Let’s walk through the steps.

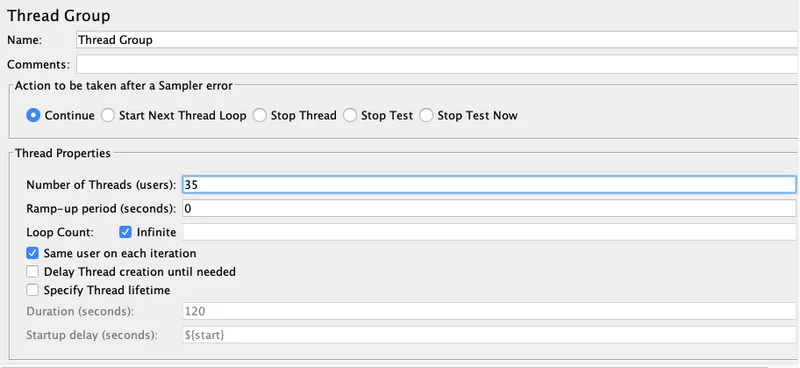

Thread Group sets up 35 threads (i.e. users) with a ramp time of 0. In my case, I expect a max concurrency of about 30 users users, so 35 threads should suffice. A few extra users will ensure there is a spare thread in case one of the requests runs a little long. All threads start immediately, but the test plan will explicitly sleep each thread as needed.

Thread Group

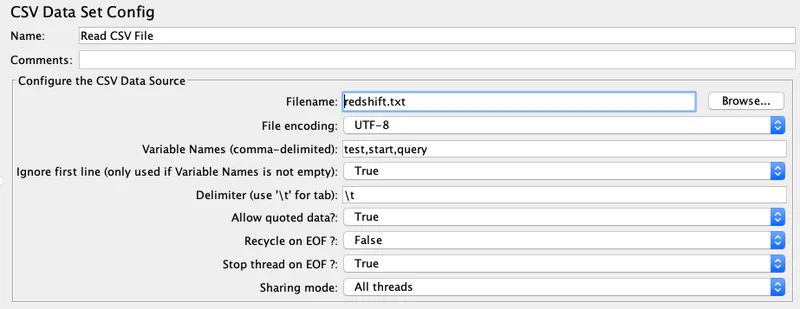

Read CSV File is a CSV Data Set Config that reads the file above. It defines three variables: test, start, and query. I never actually use the test variable. Each thread will read the next line from the file. This drives the overall test.

Read CSV File

Configure Redshift is a JDBC Connection Configuration that defines the connection pool for Redshift. You will need to add the Redshift JDBC driver to the JMeter lib folder and restart JMeter if you are running a Redshift test.

Execution Controller is a Simple Controller that groups the Query and Wait together. Honestly, I’m not clear why I need a controller here, but the Run Query task would not wait for the timer unless I added it.

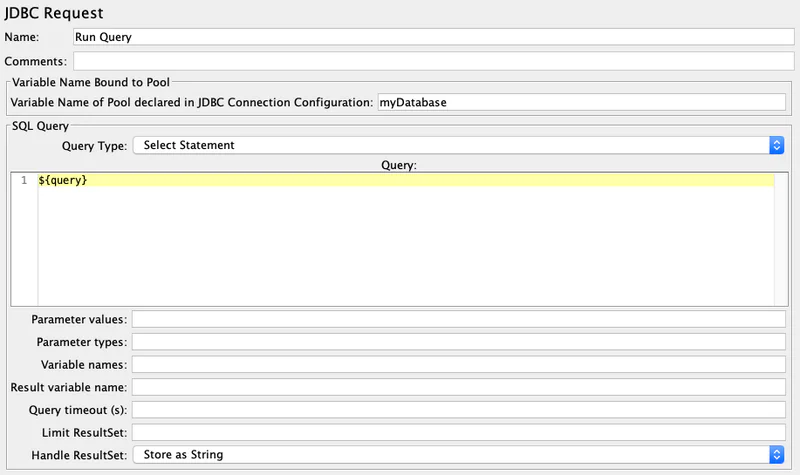

Run Query is a JDBC Request that executes whatever is in the query variable for the current thread against the Redshift connection pool.

JDBC Request

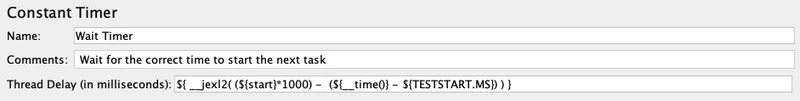

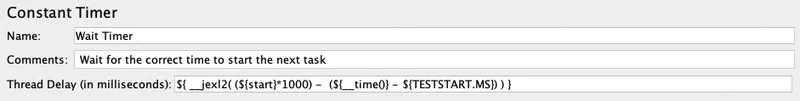

Wait Timer is a Constant Timer that sleeps until it’s time execute the query. It is a child of Run Query so that it only delays the Run Query step. Note that the wait occurs before Run Query executes.

Wait Timer

The wait is calculated as follows, where time() is the current time in ms and TESTSTART.MS is the time the test started in ms. Therefore, the new wait variable is the time from now that the next step should start (in ms).

1

${ __jexl2( (${start}*1000) -  (${__time()} - ${TESTSTART.MS}) ) }

Summary Report and View Results Tree simply export test results in different formats. These are optional and cen be eliminate or replaced with another Listener if you prefer.

Overall this seems to meet my goals. It’s not perfect – some queries are delayed a few seconds – but over the course of a day that should not matter much. If you have a better way, please add it in the comments. If you would like, you can download my test plan.
